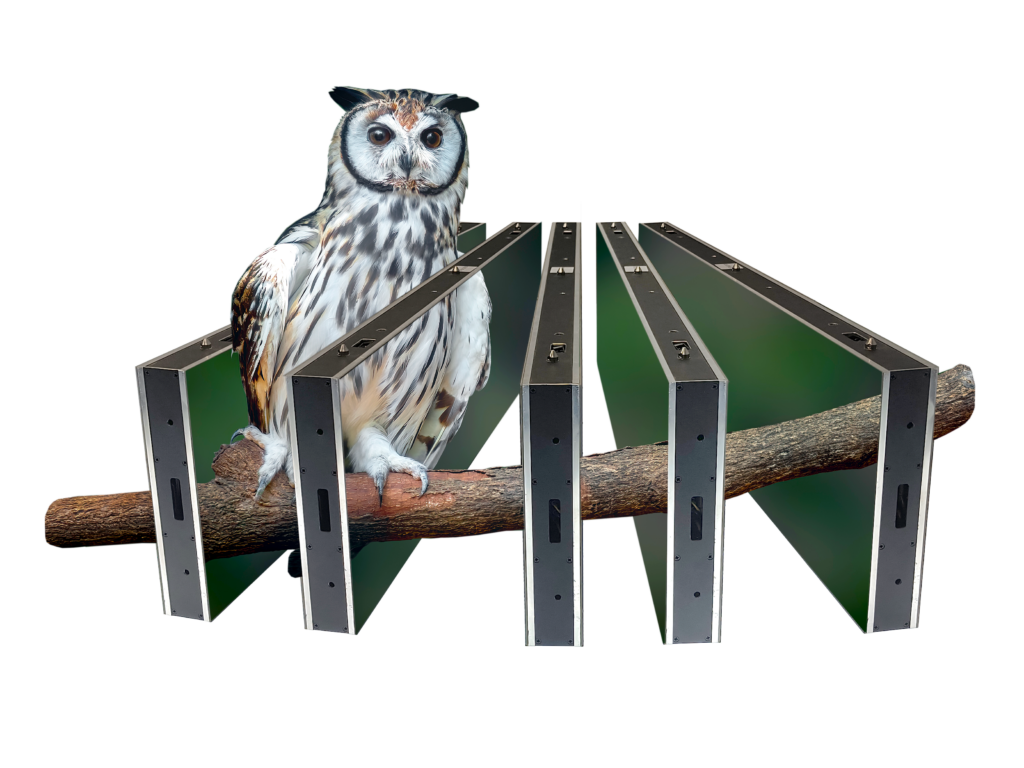

Dual side display in a super slim solution.
Technical parameters
Module Parameters
Pixel Pitch 1.95 mm
LED type SMD1515
Module resolution 128 x 128
Cabinet Specifications
Cabinet size (W x H xD) 1,000 x 250 x 33 mm | 750 x 250 x33 mm
Cabinet Materials Aluminium
Technical Specifications
Brightness 800 nits
Viewing Angle 160°V – 160°H
Refresh Rate 3,840 Hz
Ecoative Features
Nox & Sox Abatement 50.03%
Certification of pollution abetment ISO 22197 from Fraunhofer Institut
Antidust Yes
Self-cleaning Yes
Module Parameters
Pixel Pitch 2.5 mm
LED type SMD1515
Module resolution 100 x 100
Cabinet Specifications
Cabinet sizes (W x H xD) 500 x 250 x 53 mm or 1,000 x 250 x 53 mm
Cabinet Materials Aluminium
Technical Specifications
Brightness 800 nits
Viewing Angle 160°V – 160°H
Refresh Rate 3,840 Mhz
Ecoative Features
Nox & Sox Abatement 50.03%
Certification of pollution abetment ISO 22197 from Fraunhofer Institut
Antidust Yes
Self-cleaning Yes
Module Parameters
Pixel Pitch 2.5 mm
LED type SMD1515
Module resolution 100 x 100
Cabinet Specifications
Cabinet sizes (W x H xD) 500 x 250 x 53 mm or 1,000 x 250 x 53 mm
Cabinet Materials Aluminium
Technical Specifications
Brightness 800 nits
Viewing Angle 160°V – 160°H
Refresh Rate 3,840 Mhz
Ecoative Features
Nox & Sox Abatement 50.03%
Certification of pollution abetment ISO 22197 from Fraunhofer Institut
Antidust Yes
Self-cleaning Yes
Module Parameters
Pixel Pitch 2.98 mm
LED type SMD1515
Module resolution 84 x 84
Cabinet Specifications
Cabinet sizes (W x H xD) 500 x 250 x 53 mm or 1,000 x 250 x 53 mm
Cabinet Materials Aluminium
Technical Specifications
Brightness 800 – 1,000 nits
Viewing Angle 160°V – 160°H
Refresh Rate 3,840 Mhz
Ecoative Features
Nox & Sox Abatement 50.03%
Certification of pollution abetment ISO 22197 from Fraunhofer Institut
Antidust Yes
Self-cleaning Yes
Main Applications
